Reliable High-Current Connections for Next-Generation Electric Vehicles
EV Battery Pack Flexible Busbars are engineered to deliver reliable electrical connections between battery cells, modules, and high-voltage components. Compared to rigid alternatives, flexible busbars effectively absorb installation tolerances, operational vibration, and thermal expansion-ensuring stable, long-term electrical performance throughout the battery pack's lifecycle.
We manufacture custom flexible copper busbars based on your precise engineering drawings or technical specs. Our products feature versatile conductor structures, advanced insulation, and high-performance surface finishes tailored to meet the stringent demands of modern automotive and energy storage systems.
Technical Capabilities & Specifications
To ensure maximum reliability in high-voltage environments, our manufacturing processes and materials align with strict industry standards:
|
Feature |
Specification / Capability |
|
Conductor Material |
High-purity Copper Foil or Braided Copper (T2 / C11000, 99.9%) |
|
Insulation Options |
High-grade Heat Shrink Tubing, Co-extruded PVC, Epoxy Powder Coating, PET |
|
Flame Retardancy |
Compliant with UL 94 V-0 standards |
|
Compliance & Quality |
RoHS & REACH certified; manufacturing aligns with IATF 16949 |
|
Surface Plating |
Tin (3–12 mu ), Nickel, or Silver plating for superior corrosion resistance |
|
Processing Technologies |
Precision Stamping, CNC Machining, Laser Cutting, and Ultrasonic Welding |
Why Choose Us Flexible Busbars?
High Conductivity, Low Resistance
Utilizing ultra-pure copper, our busbars maximize electrical efficiency while minimizing power loss, voltage drops, and localized heat generation.
Tolerance Compensation
The flexible structure easily accommodates small dimensional deviations between battery modules, simplifying pack assembly and reducing mechanical stress on joints.
Vibration & Shock Resistance
Electric vehicles face continuous road vibration. Our flexible conductors isolate mechanical stress from battery terminals, preventing micro-cracks and long-term connection failures.
Thermal Expansion Accommodation
Repeated charge/discharge cycles cause battery cells to expand and contract. Busbars absorb this dynamic volumetric change to maintain stable contact pressure.
Rapid Prototyping to Mass Production
We bridge the gap between design and scaling. We deliver validation samples within 5-7 days and seamlessly scale up to high-volume automated OEM production.
Comprehensive Custom Options
We tailor every component to fit your specific EV, HEV, or ESS battery layout:
Conductor Type

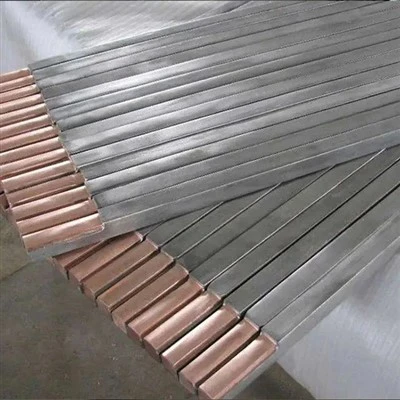

Laminated copper foil or braided copper structures.
Insulation Design
Bare copper, full insulation, or selective insulation (exposed terminals only).
Geometry & Bending
Custom lengths, multi-layered configurations, specialized offsets, and complex 3D bending profiles.
Terminal Configuration
Custom punched holes, integrated press-nuts, or specialized quick-connect interfaces.
Typical Applications
Our flexible copper busbars are widely integrated into high-voltage electrical architectures, including:
EV/HEV Battery Packs & Module-to-Module Connections
Battery Management Systems (BMS) Interconnects
High-Voltage Battery Junction Boxes (BDU / MSD)
Power Distribution Units (PDU) and Inverter Connections
Electric Buses, Trucks, and Commercial EV Platforms
Utility-Scale Energy Storage Systems (ESS)
Quality Assurance & Supply Chain Trust
We are dedicated to supporting suppliers and OEMs with demanding power distribution requirements. We accelerate your development cycles by providing:
DFM (Design for Manufacturing) Support: Expert feedback on your initial concepts to optimize cost and performance.
Strict Quality Control: 100% dimensional and electrical testing throughout the manufacturing process.
Supply Chain Stability: Consistent dimensional tolerances and reliable lead times for long-term OEM contracts.
FAQ
Q: Can you manufacture according to our drawings?
A: Yes. Most of our products are customized according to customer drawings, samples, or technical specifications.
Q: What materials do you use?
A: We primarily use high-conductivity copper with optional tin, nickel, or silver plating depending on the application.
Q: What insulation options are available?
A: We offer heat shrink tubing, PVC insulation, epoxy powder coating, and other customized insulation solutions.
Q: Can you produce prototypes?
A: Yes. Prototype samples are available for design verification before mass production.
Q: Are these busbars suitable for high-vibration environments?
A: Yes. The flexible conductor structure is designed to absorb vibration and reduce stress on battery terminals.
Q: What information is required for a quotation?
A: We recommend providing drawings, conductor dimensions, current requirements, insulation specifications, plating requirements, and estimated order quantity.
Q: Can you support OEM production?
A: Yes. We provide both prototype development and high-volume OEM manufacturing with consistent quality control.
Q: Which industries use these flexible busbars?
A: Our products are widely used in electric vehicles, hybrid vehicles, battery energy storage systems, industrial battery packs, and other high-current power distribution applications.
