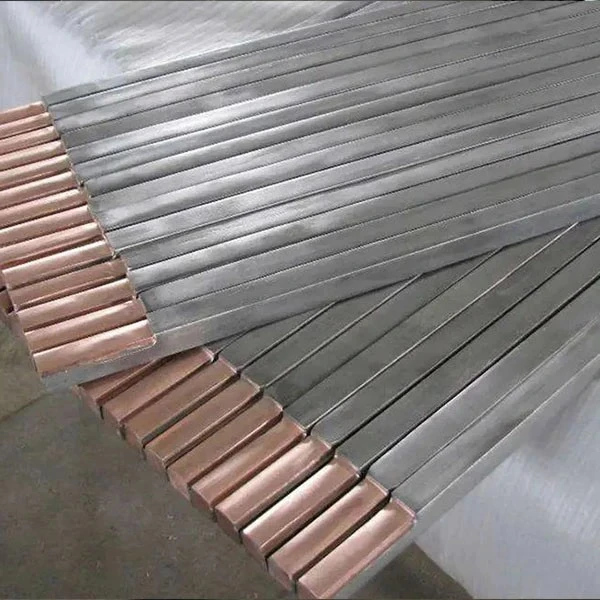

Braided Copper Flexible Busbar



In Europe and North America, power component procurement decisions are driven by strict engineering reliability rather than generic product claims. Technical buyers and quality engineers typically evaluate braided copper busbars based on five critical vectors:

Dynamic Stability: Performance under continuous vibration and mechanical shock without fatigue.

Thermal Management: Temperature rise ($\Delta T$) control and minimized contact resistance at connection points.

Tolerance Compensation: Ability to absorb manufacturing, structural, and installation misalignments.

Space Efficiency: Maximizing ampacity (current-carrying capacity) within compact, high-density layouts.

Long-Term Durability: Operational reliability under continuous thermal cycling and environmental aging.

This product line is specifically engineered to eliminate these critical failure risks in high-performance electrical systems.





A Braided Copper Flexible Busbar is an advanced multi-strand copper conductor formed into a tightly woven, flat or tubular structure that perfectly balances high electrical conductivity with mechanical flexibility.

It serves as the critical link to connect electrical components where rigid busbars are impractical due to structural movement, thermal expansion, or severe vibration. Unlike solid copper bars, the engineered braided structure allows controlled multi-directional flexibility without sacrificing cross-sectional area or electrical continuity.





Vibration Absorption & Fatigue Resistance
The interwoven braided structure effectively distributes multi-directional mechanical stress across hundreds of individual fine wire strands, preventing stress concentration at the termination joints. This drastically reduces the risk of micro-cracking, fastener loosening, or catastrophic fatigue failure in dynamic environments like moving EVs or vibrating industrial machinery.

Lower Contact Resistance & Suppressed Temperature Rise
By engineering precise, flat termination surfaces, the contact pressure from fasteners is evenly distributed. This maximizes the effective contact surface area, significantly reducing localized contact resistance and limiting heat build-up at the terminals under full-load conditions.

Mechanical Tolerance Compensation
In real-world factory assembly lines, perfect alignment between rigid electrical terminals is rarely achievable. Our flexible busbars easily accommodate angular deviations and three-axis positional offsets. This prevents the transmission of structural stress to sensitive components (such as battery cells or ceramic IGBT substrates), enabling faster assembly and zero-defect installation.

Exceptional Thermal Expansion Stability
High-current power systems experience frequent thermal expansion and contraction cycles. While rigid bars can warp or exert severe mechanical stress on contact points during temperature spikes, the braided body flexes naturally, maintaining constant, stable contact pressure over a decades-long operational lifespan.

Optimized for Confined Spaces & Complex Geometry
The flexible geometric routing capability allows these busbars to bend around obstacles and fit into complex, tight enclosures where rigid copper busbars cannot be installed due to bending radius limitations.









We maintain strict traceability and material compliance to ensure international standards are met:

Conductor Material: High-purity T2 / C11000 electrolytic tough pitch (ETP) copper wires (Copper content 99.90%, Conductivity100% IACS).

Single Strand Diameter: Standard 0.10mm-0.15 mm, or 0.20 mm wires tailored for required flexibility levels.

Surface Finishes: Bare copper or electro-tin-plated (providing excellent corrosion and oxidation resistance in humid or salty environments).

Insulation Options: High-dielectric PVC, high-temperature silicone, or halogen-free heat shrink tubing (Flame retardant rated up to UL94-V0; voltage isolation up to 1000V AC 1500V DC.

Termination Technology: High-pressure seamless pressed lugs, punched solid ends, or advanced molecular diffusion welding (welded ends provide near-zero contact resistance equal to solid copper).









Our Quality Assurance (QA) protocols are rooted in functional reliability and mechanical performance rather than just surface appearance:

Micro-Ohm Resistance Testing: Verifying electrical resistance consistency across the entire batch to ensure no hot spots.

Terminal Pull Strength (Tensile Test): Ensuring the mechanical joint between the braided body and the solid end exceeds industrial pull-off standards.

Bending & Vibration Endurance Verification: Simulating real-world aging to guarantee the strands do not fatigue or snap over extended life cycles.

High-Voltage Dielectric Testing: 100% spark testing on insulated profiles to guarantee zero insulation breakdown at high operating voltages.





Connection Method	Mechanical Flexibility	Vibration Absorption	Thermal Expansion Accommodation	Terminal Contact Resistance	Ideal Application
Rigid Copper Busbar	Zero	Poor (Transmits stress, prone to cracking)	Poor (Exerts high mechanical stress on terminals)	Very Low	Fixed, static high-power distribution with perfect alignment.
Standard Cable Assembly	High	Moderate (Heavy cables can strain lugs under vibration)	Moderate	Moderate (Prone to higher crimp resistance over time)	Long-distance routing with complex curves and low vibration.
Braided Copper Busbar	Excellent (Multi-axis flexibility)	Superior (Absorbs high-frequency vibration)	Excellent (Naturally expands/contracts)	Very Low (Optimized flat terminal surfaces)	Short-to-medium distance links in EV, ESS, and dynamic power systems.
